SKU: SKU: BAJ492006

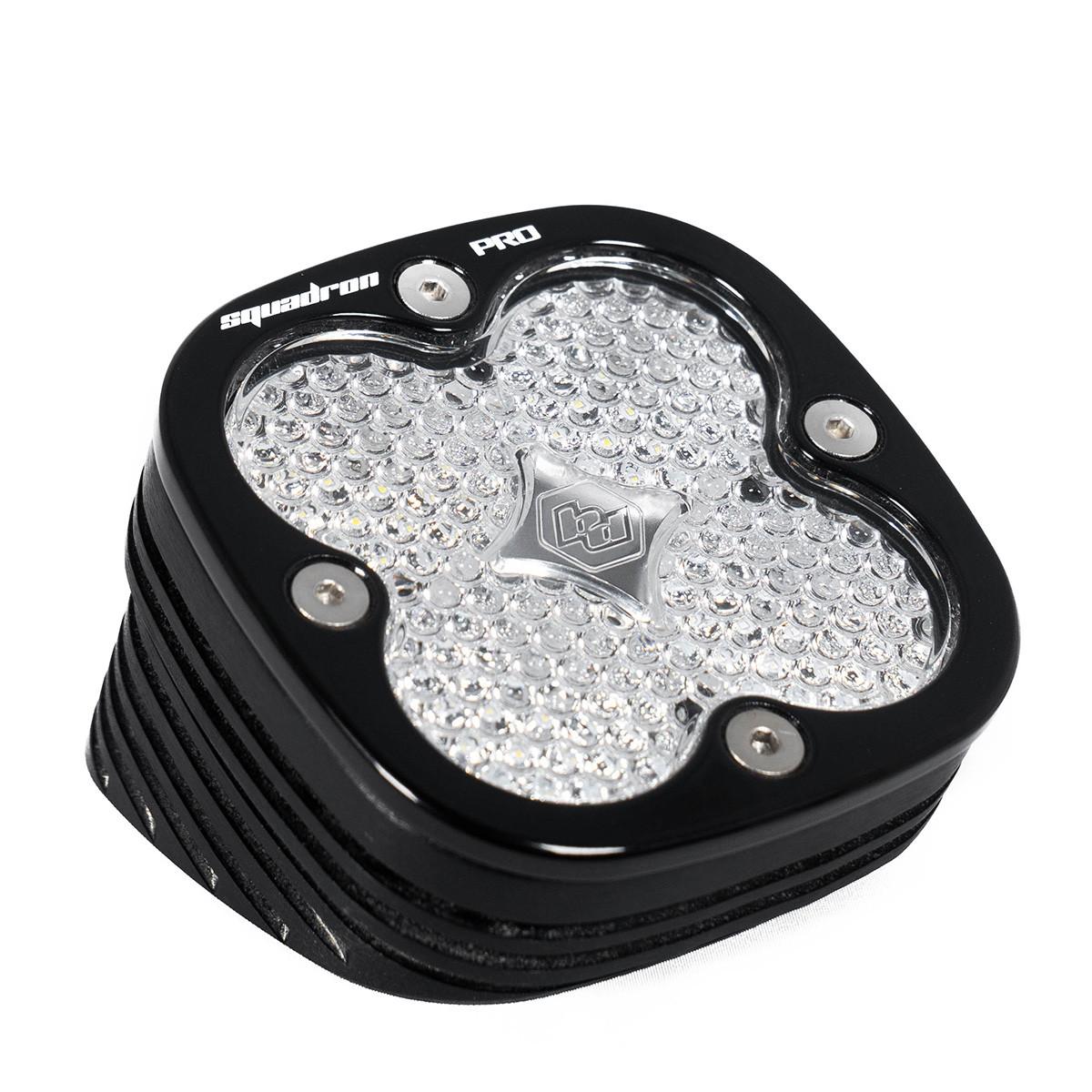

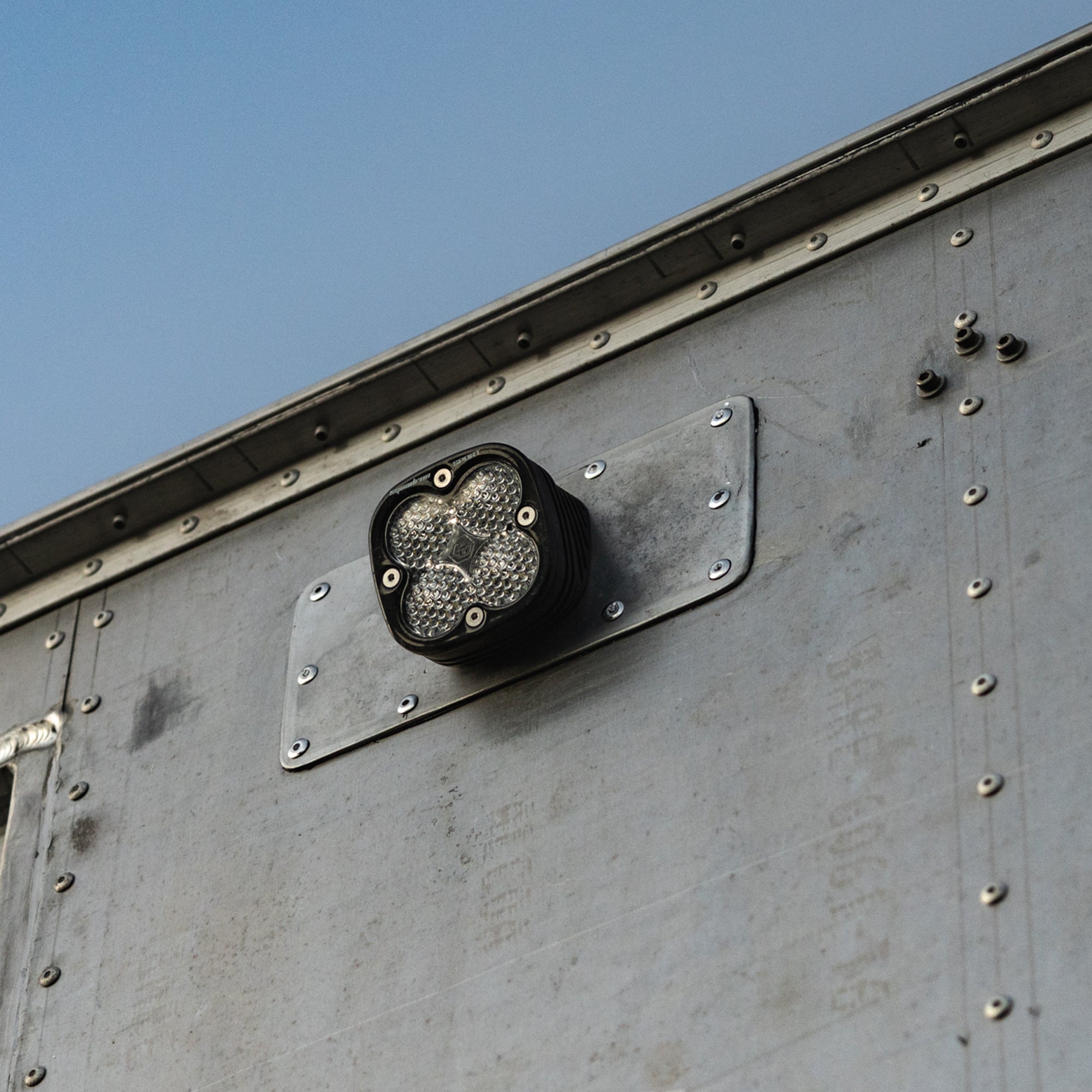

The Baja Designs Squadron Pro LED angle mount light will allow you to light up the night.Paired with our work/scene lens, this light is ideal for mounting on the side of a vehicle or trailer and gives a usable work light for camp, pit, or any work area that needs illumination. While compact the Squadron Pro angled mount light outshines the competition through both appearance and performance using next-generation LEDs pushing out 4,095 lumens at 41W. The 25-degree angledhousing is perfect for the side of trailers or any application where you need an angled mount solution for auxiliary lighting. The angled flush mount allows you to easily mount to a flat surface by only drilling three small holes. The light comes with all the necessary hardware to make installation straightforward.Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117 (Squadron 2-Light Max Wiring Harness 150w).USPTO Reg No. 5,766,659
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro Angle Mount LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation Instructions
Brochure / Owner's Manual
