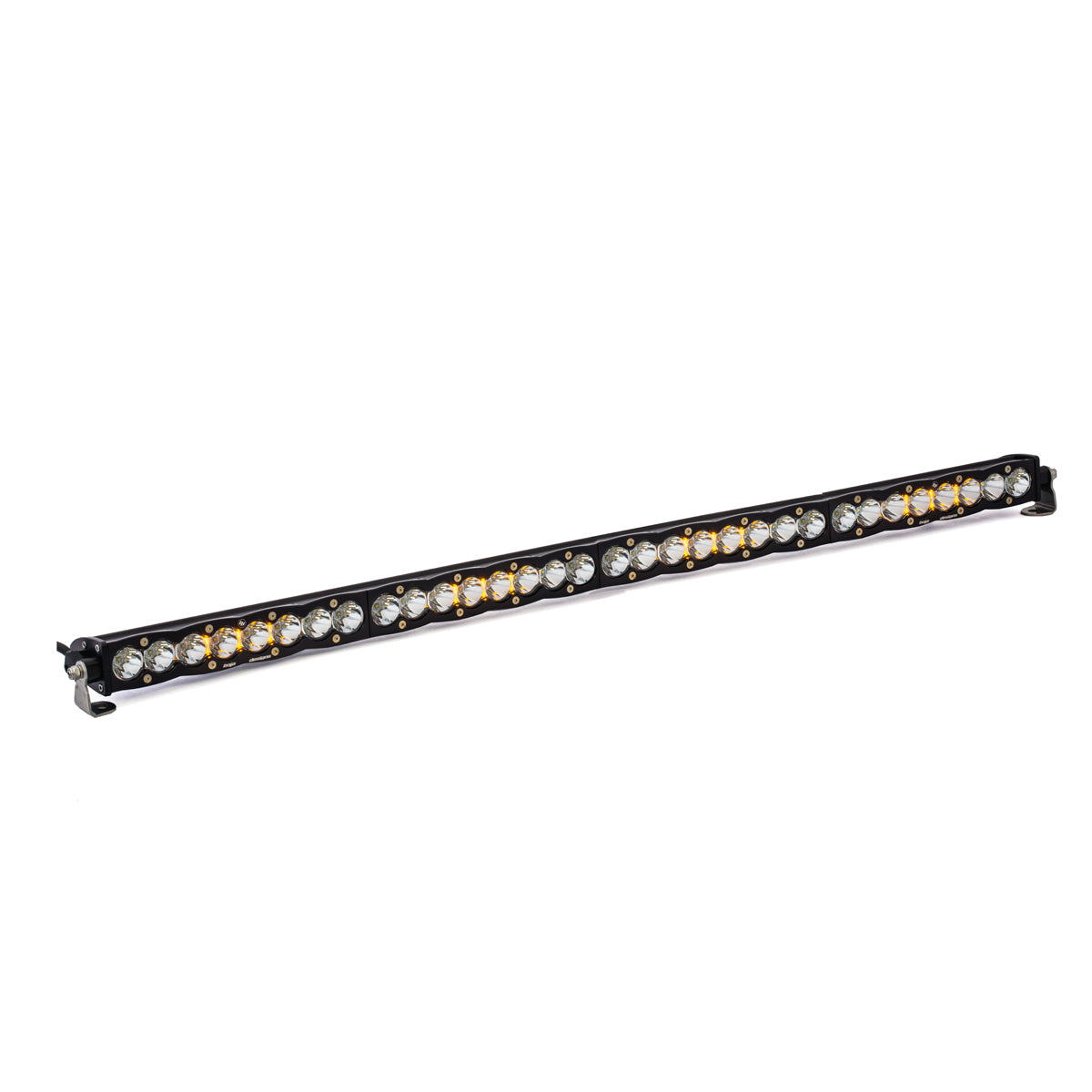

The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").
Features & Benefits
- NOTE: *This light does NOT come with a harness, The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10?-30?).
- Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle
- The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness
- The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30")
Specifications
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam/Amber Backlit Feature |
| Lighting Quantity |
32 |
| Lighting Technology |
Cree LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Description |
Mounting Brackets |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S8 40 Inch LED Light Bar |
| Universal or Specific |
Universal |
| Wattage (W) |
240 |
| Wiring Harness Included |
No |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |

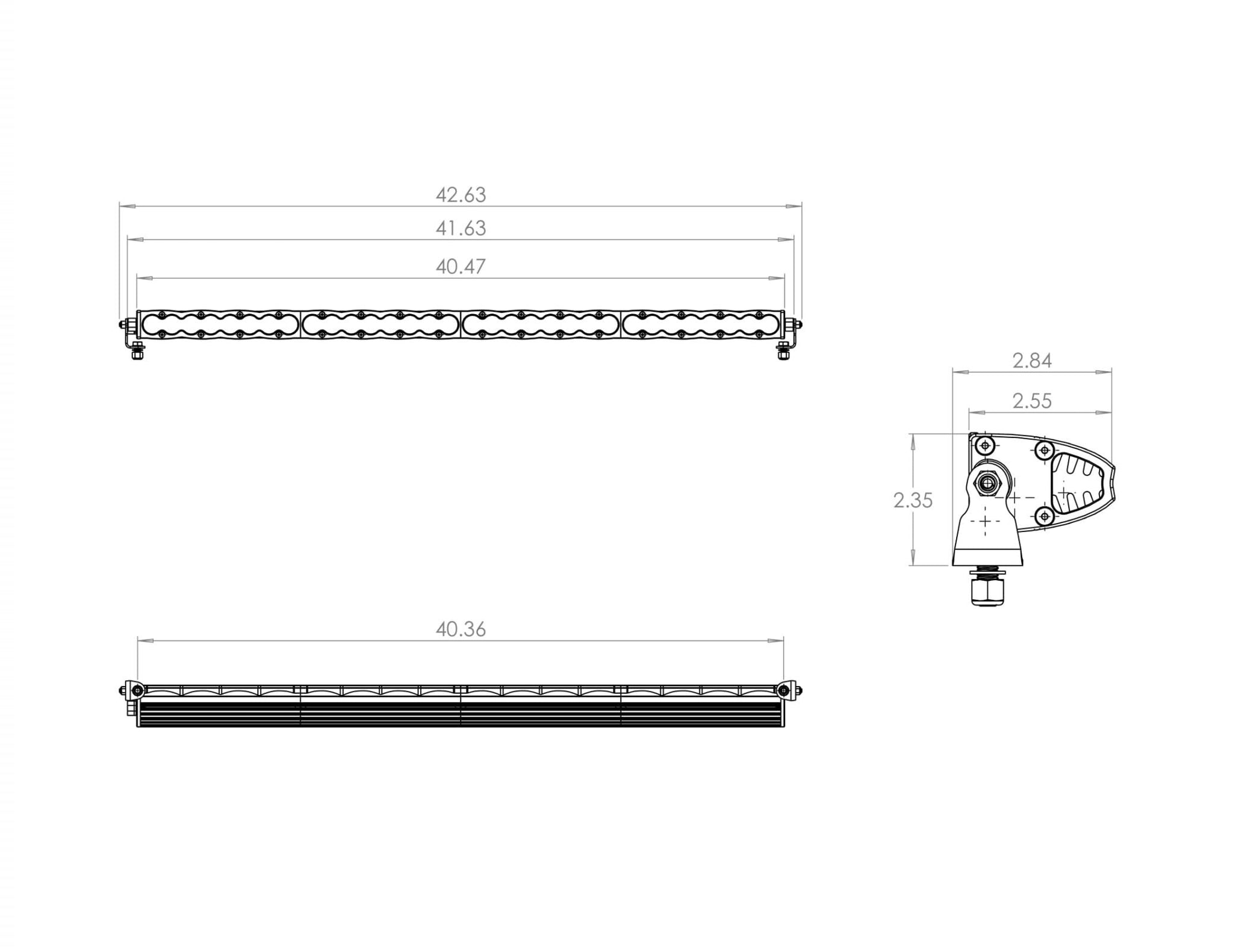

| Depth (in.) |
3 |
| Height (in.) |
1.6 |
| Length (in.) |
40 |
| Weight (lbs.) |
8.65 |
| Amperage Rating (A) |
16.0 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Work/Scene |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
25,400 |
| Housing Color |
Black |
| Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color |
Clear |
Documentation
Brochure / Owner's Manual
