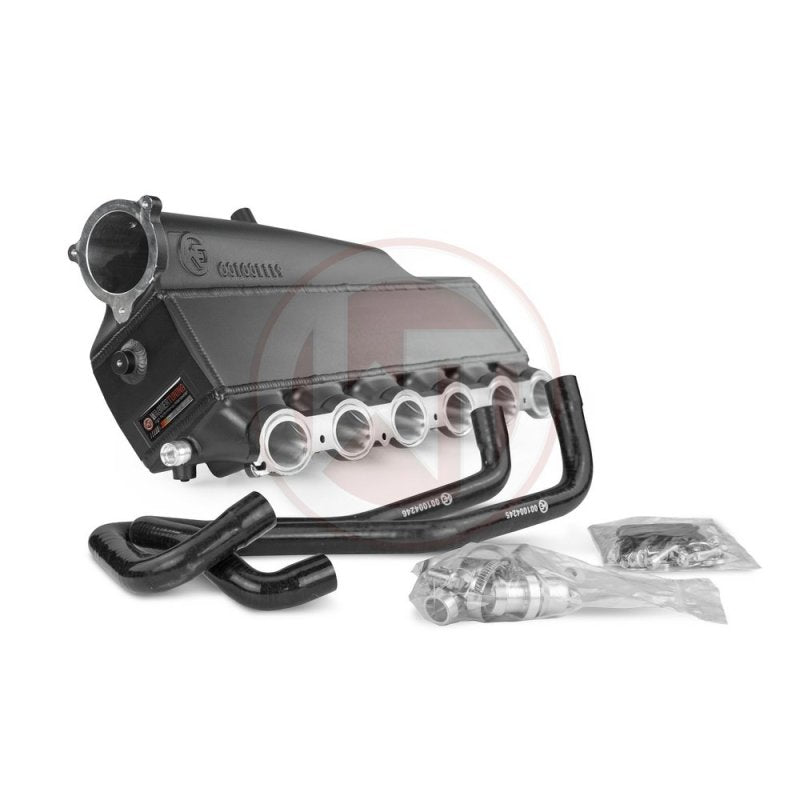

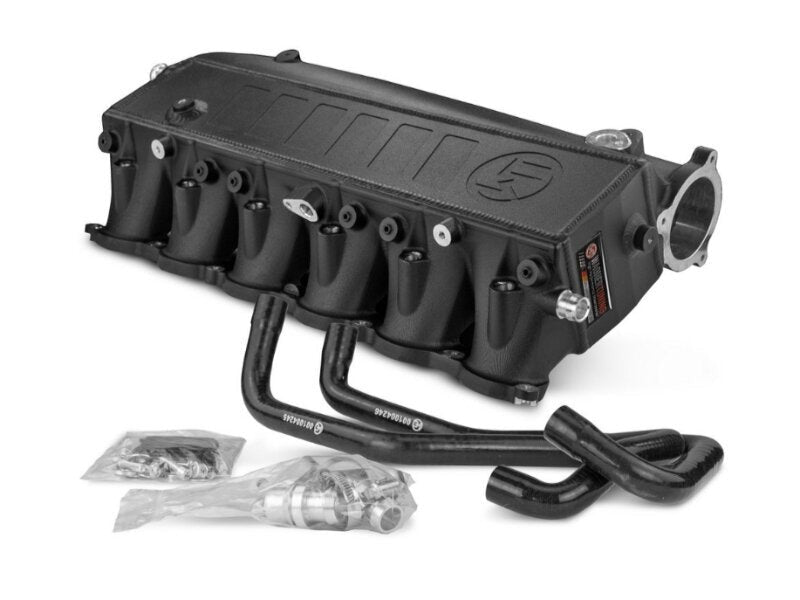

Wagner Tuning Toyota Supra MK5 A90/A91 B58.2T EVO1 Intake Manifold w/ Integrated Intercooler

The 3.0 Liter B58.2 turbo engine of the specified BMW/Toyota models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a watercooled intercooler, which is integrated directly into the intake manifold.

The WAGNERTUNING intake manifold with integrated intercooler has got a new performance core which was specially developed for the high requirements and individual mounting position of the B58.2 engine and offers 128% more external core volume compared to the original intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal airflow. With the help of CFD simulations, the CNC-milled end tanks were designed for optimal airflow conditions. The result is an excellent cooling property with minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti-corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Advantages of this product:

• significantly better cooling performance (up to 20°C cooler IAT)
• maximum mechanical discharge of the turbocharger (35% less back pressure)
• more power and torque for your engine
• 100% pressure resistance
• 100% Plug and Play (no modifications)
• preprocessed port fuel injection (Fuel Rail not included)
• three 1/8 NPT ports for measuring additional parameters
• six preprocessed NOS or WMI ports (Nozzles not included)
• this intake manifold is suitable for all performance levels
• up to 4 years warranty
• important information for oil service: the oil filter still can be replaced without removing the intake manifold again!

Fitment:

• BMW 2-Series G42 M240i
• BMW 3-Series G20/G21 M340i
• BMW 4-Series G22/G23/G26 M440i
• BMW Z4 G29 M40i
• Toyota GR Supra MK5
